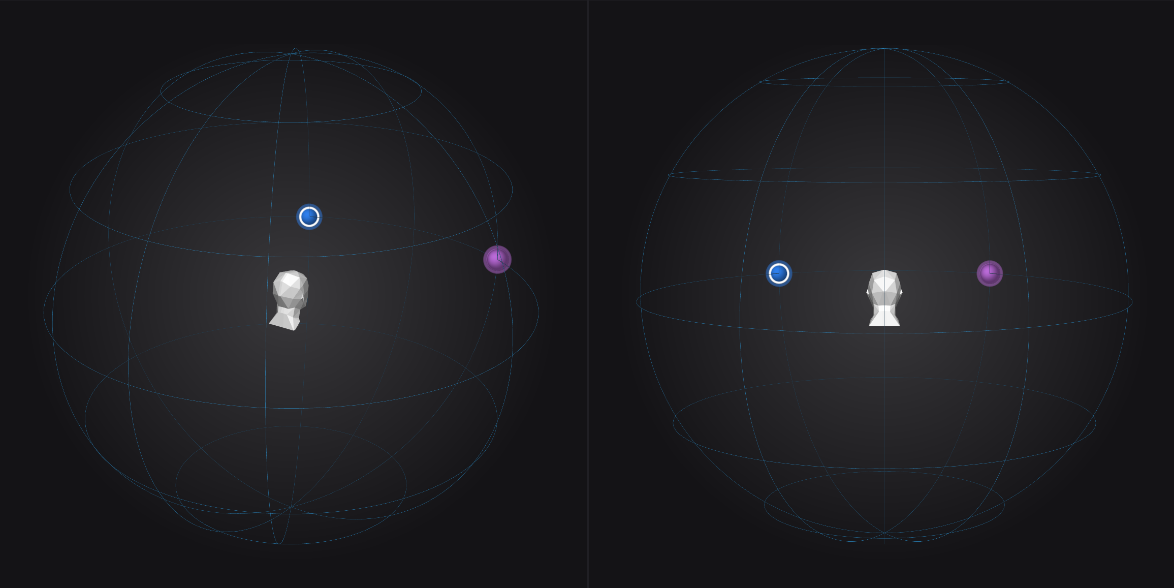

2ch Stereo
# | Azimuth | Elevation |
1 | 30 | 0 |
2 | -30 | 0 |
5ch Surround
# | Azimuth | Elevation |
1 | 0 | 0 |
2 | 30 | 0 |
3 | -30 | 0 |
4 | 110 | 0 |
5 | -110 | 0 |

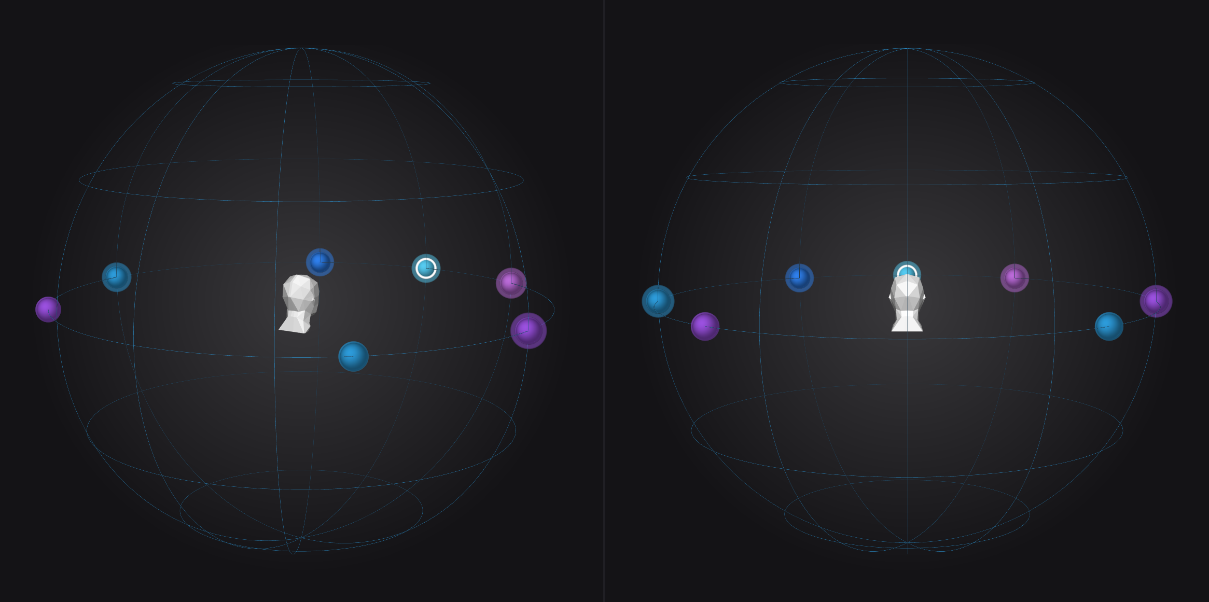

7ch Surround
# | Azimuth | Elevation |
1 | 0 | 0 |
2 | 30 | 0 |
3 | -30 | 0 |
4 | 90 | 0 |
5 | -90 | 0 |
6 | 135 | 0 |
7 | -135 | 0 |

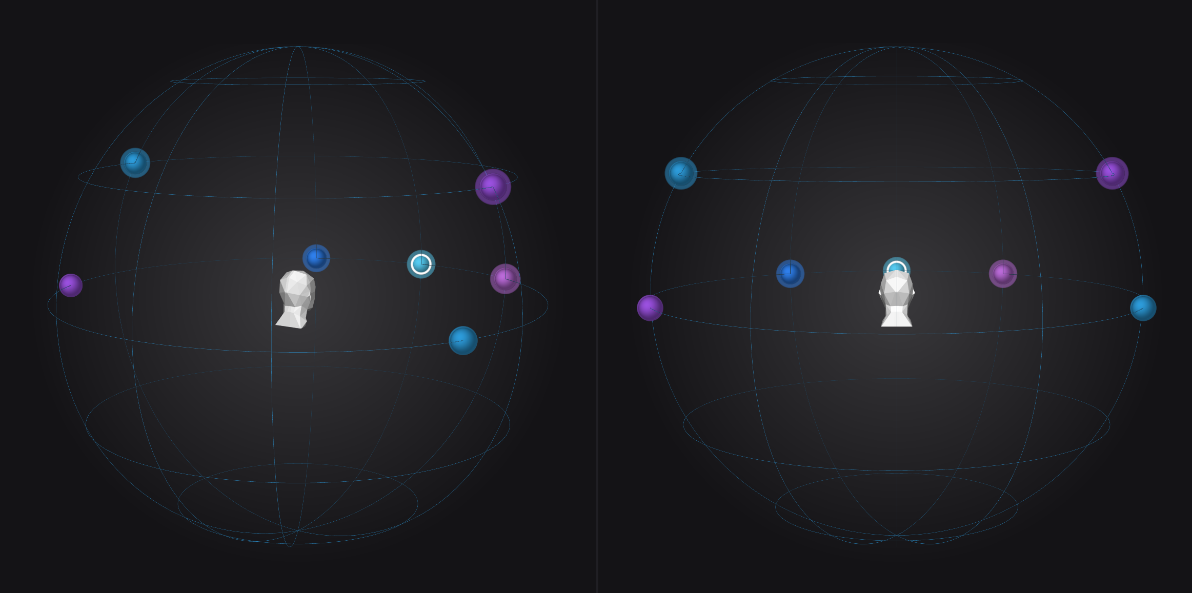

5ch Surround with 2 Uppers
# | Azimuth | Elevation |
1 | 0 | 0 |
2 | 30 | 0 |
3 | -30 | 0 |
4 | 110 | 0 |
5 | -110 | 0 |
6 | 90 | 30 |
7 | -90 | 30 |
4.2.2
# | Azimuth | Elevation |
1 | 0 | 0 |
2 | 90 | 0 |
3 | -90 | 0 |
4 | 180 | 0 |
5 | 90 | 30 |
6 | -90 | 30 |
7 | 90 | -30 |
8 | -90 | -30 |

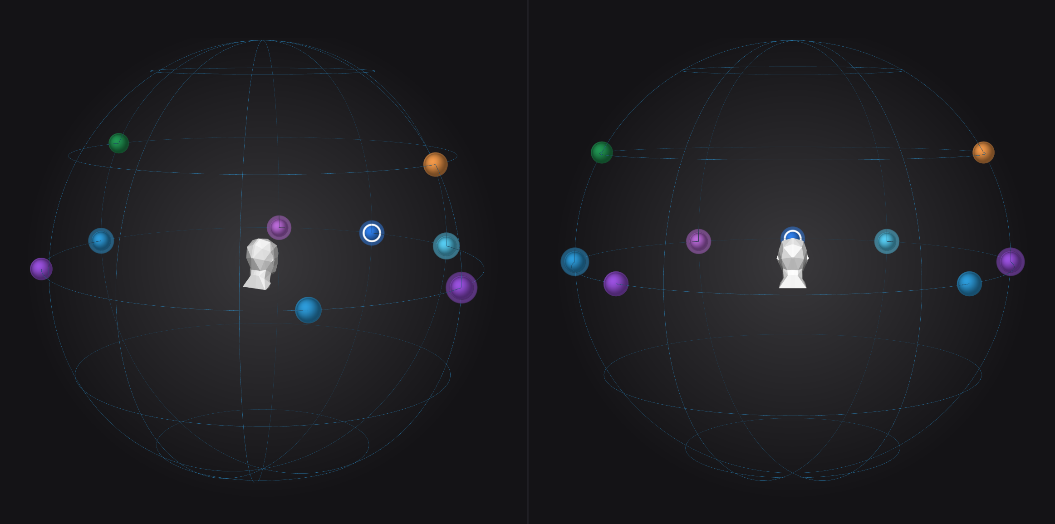

7ch Surround with 2 Uppers
# | Azimuth | Elevation |
1 | 0 | 0 |
2 | 30 | 0 |
3 | -30 | 0 |
4 | 90 | 0 |
5 | -90 | 0 |
6 | 135 | 0 |
7 | -135 | 0 |
8 | 90 | 30 |
9 | -90 | 30 |
5ch Surround with 4 Uppers
# | Azimuth | Elevation |
1 | 0 | 0 |
2 | 30 | 0 |
3 | -30 | 0 |
4 | 110 | 0 |
5 | -110 | 0 |
6 | 45 | 30 |
7 | 045 | 30 |
8 | 135 | 30 |
9 | -135 | 30 |
5.5.0
# | Azimuth | Elevation |
1 | 0 | 0 |
2 | 30 | 0 |
3 | -30 | 0 |
4 | 110 | 0 |
5 | -110 | 0 |
6 | 0 | 30 |
7 | 30 | 30 |
8 | -30 | 30 |
9 | 110 | 30 |
10 | -110 | 30 |
5.4.1
# | Azimuth | Elevation |
1 | 0 | 0 |
2 | 30 | 0 |
3 | -30 | 0 |
4 | 110 | 0 |
5 | -110 | 0 |
6 | 30 | 30 |
7 | -30 | 30 |
8 | 110 | 30 |
9 | -110 | 30 |
10 | 0 | -30 |
4.4.2
# | Azimuth | Elevation |
1 | 30 | 0 |
2 | -30 | 0 |
3 | 110 | 0 |
4 | -110 | 0 |
5 | 30 | 30 |
6 | -30 | 30 |
7 | 110 | 30 |
8 | -110 | 30 |
9 | 30 | -30 |
10 | -30 | -30 |
5.3.2
# | Azimuth | Elevation |
1 | 0 | 0 |
2 | 30 | 0 |
3 | -30 | 0 |
4 | 110 | 0 |
5 | -110 | 0 |
6 | 0 | 30 |
7 | 30 | 30 |
8 | -30 | 30 |
9 | 30 | -30 |
10 | -30 | -30 |
3.5.2
# | Azimuth | Elevation |
1 | 0 | 0 |
2 | 30 | 0 |
3 | -30 | 0 |
4 | 0 | 30 |
5 | 30 | 30 |
6 | -30 | 30 |
7 | 110 | 30 |
8 | -110 | 30 |
9 | 30 | -30 |
10 | -30 | -30 |
7.4.0
# | Azimuth | Elevation |
1 | 0 | 0 |
2 | 30 | 0 |
3 | -30 | 0 |
4 | 90 | 0 |
5 | -90 | 0 |
6 | 135 | 0 |
7 | -135 | 0 |
8 | 45 | 30 |
9 | -45 | 30 |
10 | 135 | 30 |
11 | -135 | 30 |
4.4.4
# | Azimuth | Elevation |
1 | 45 | 0 |
2 | -45 | 0 |
3 | 135 | 0 |
4 | -135 | 0 |
5 | 45 | 30 |
6 | -45 | 30 |
7 | 135 | 30 |
8 | -135 | 30 |
9 | 45 | -30 |
10 | -45 | -30 |
11 | 135 | -30 |
12 | -135 | -30 |
5.4.4
# | Azimuth | Elevation |
1 | 0 | 0 |
2 | 30 | 0 |
3 | -30 | 0 |
4 | 110 | 0 |
5 | -110 | 0 |
6 | 30 | 30 |
7 | -30 | 30 |
8 | 110 | 30 |
9 | -110 | 30 |
10 | 30 | -30 |
11 | -30 | -30 |
12 | 110 | -30 |
13 | -110 | -30 |
5.5.3
# | Azimuth | Elevation |
1 | 0 | 0 |
2 | 30 | 0 |
3 | -30 | 0 |
4 | 110 | 0 |
5 | -110 | 0 |
6 | 30 | 30 |
7 | -30 | 30 |
8 | 0 | 30 |
9 | 110 | 30 |
10 | -110 | 30 |
11 | 0 | -20 |
12 | 30 | -20 |
13 | -30 | -20 |

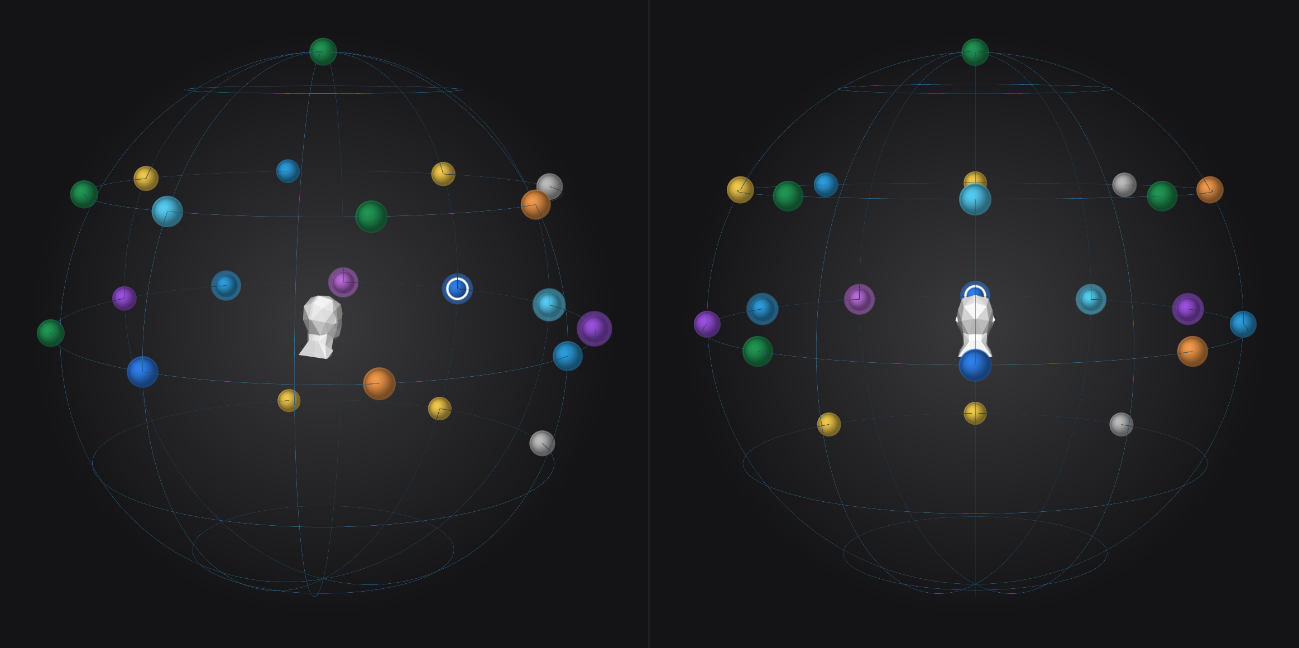

22 static objects as Max
# | Azimuth | Elevation |
1 | 0 | 0 |
2 | 30 | 0 |
3 | -30 | 0 |
4 | 60 | 0 |
5 | -60 | 0 |
6 | 90 | 0 |
7 | -90 | 0 |
8 | 135 | 0 |
9 | -135 | 0 |
10 | 180 | 0 |
11 | 0 | 30 |
12 | 45 | 30 |
13 | -45 | 30 |
14 | 90 | 30 |
15 | -90 | 30 |
16 | 135 | 30 |
17 | -135 | 30 |
18 | 180 | 30 |
19 | 0 | 90 |
20 | 0 | -30 |
21 | 45 | -30 |
22 | -45 | -30 |
